phosphor bronze 0.25mm cr2032 battery holder
    phosphor bronze 0.25mm cr2032 battery holder

Product Description:

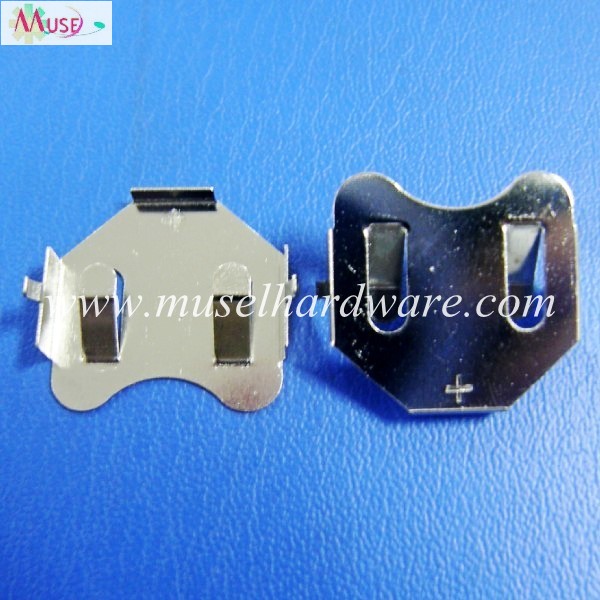

Phosphor bronze 0.25mm cr2032 battery holder with nickel plated


Name Battery Holders
Battery Type Function Coin Cell, Retainer
Style Retainer
Battery Cell Size Coin, 20.0mm
Battery Series 2016, 2020, 2025, 2032
Mounting Type PCB, Through Hole
Termination Style PC Pin
Height Above Board 0.145" (3.68mm)
Packing  Tape reel package
Description RETAINER COIN 20MM WITH PC PINS
Lead Free Status / RoHS Status Lead free / RoHS Compliant

Coin cell retainers are simple metal contacts that both electrically connect coin cells and hold them in place,
while taking up minimal additional space on the PCB. They feature nickel-plating, and since most coin cells
have nickel shells this helps to prevent galvanic corrosion, an electrochemical process that can damage
dissimilar metals that are in electrical contact. Our retainers are always designed with automation in mind,
and can be easily picked and placed, with both through hole and surface mount retainers available for most
coin cell sizes. Combining the ease of automation with the low cost of MPD's retainers, it is no wonder they
are such a popular product.
